Live Webcast Auction Of Former Assets of Advance Manufacturing – Large Capacity Heavy Machining & Welding Facility

CNC Horizontal Boring Mills • Vertical Turret Lathe • CNC Rotary Tables • Welding Equipment • Large Capacity Fabrication Assets

Live Webcast Sale: Tuesday, September 1st, 11:00 AM ET
Inspection: By Appointment Only
Checkout Dates: 9/2 – 9/16
Location: Cleveland, OH
Sale In Conjunction With: Prestige Auctions

ACCEPTING PRE-AUCTION OFFERS ON MAJOR MACHINES

Featured Assets

CNC Horizontal Boring Mills

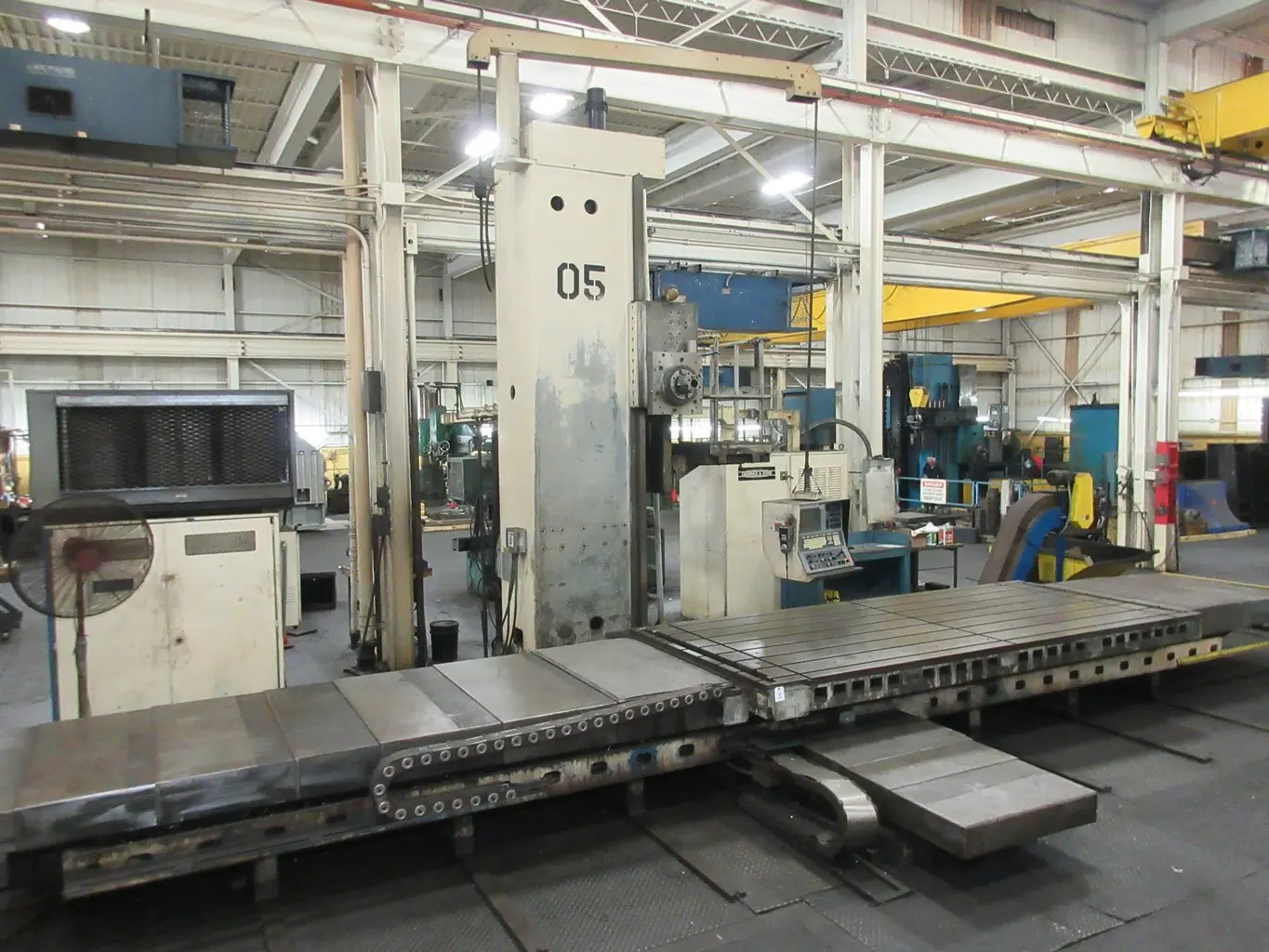

Giddings & Lewis G60-T CNC Table-Type Horizontal Boring Mill, 6" Spindle Diameter, Travels: X-168", Y-115", Z-48" (Spindle), W-35", 72" x 170" Table, Speeds 12-2500 RPM, 70,000 Lb. Table Weight Capacity, Thru-Spindle & Flood Coolant, Hansen Oil Chiller, 10" Chip Conveyor, 50-Pocket Stand Alone ATC, 50 HP Spindle Motor, G & L 8000M CNC Controls, S/N 450-218-89

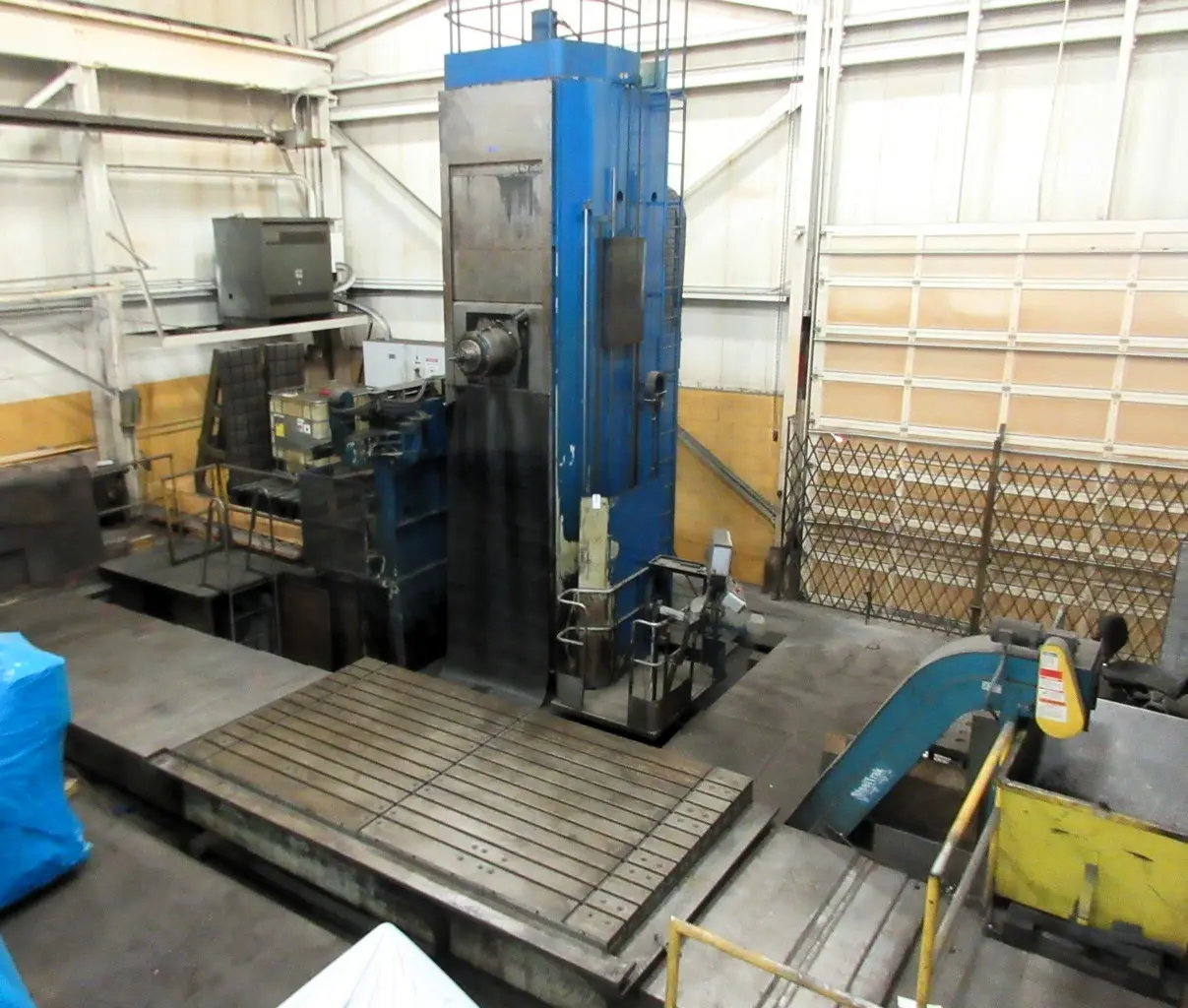

Olympia 6HT160x140 CNC Table Type Horizontal Boring Mill, 6.1" Spindle Diameter, 120 Station ATC, Travels: X-157.4", Y-141.73", Z-39.37" (Spindle), W-59.05" (Column Infeed), 80" x 144" Table, Speeds 6-2000 RPM, 105,000 Lb. Table Weight Capacity, 80 HP Spindle Motor, 120-Pocket ATC, New London Chip Conveyor, Siemens 840D, S/N: OE-06-506
Lucas 542B120 Table-Type Horizontal Boring Mill, 5" Spindle Diameter, #50 Taper w/Power Draw Bar, Approximate Travels: X-132", Y-96", Z-36", W-60", 56" x 144" T-Slotted Table, Spindle Speeds 10-1220 RPM, Sony Magnescale LF-200 and Elm Systems A-70L Digital Readout, Pendant Controls, Hydraulic Power Unit, Right Angle Boring Head, S/N: 42B3903

Vertical Turret Lathe

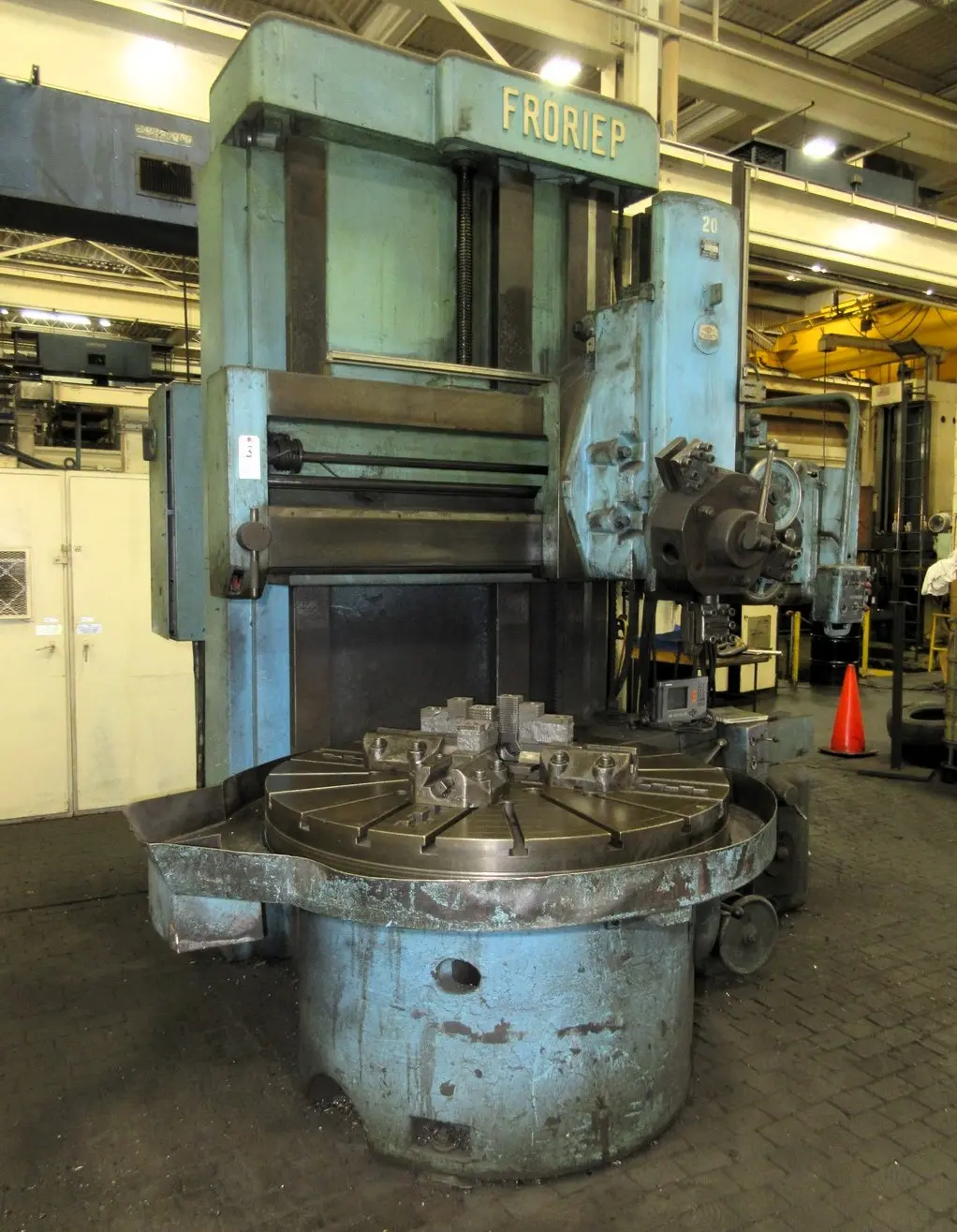

Froriep 54" Vertical Turret Lathe, 54" Diameter Table w/4-Face Plate Jaws, 5-Position Vertical Turret, Side Head, 65" Swing, 48" Height Under Cross Rail, Table Speeds to 180 RPM, Heidenhain 2-Axis Digital Readout, Pendant, 38-kW 220/440V, S/N- W13080

CNC Rotary Tables

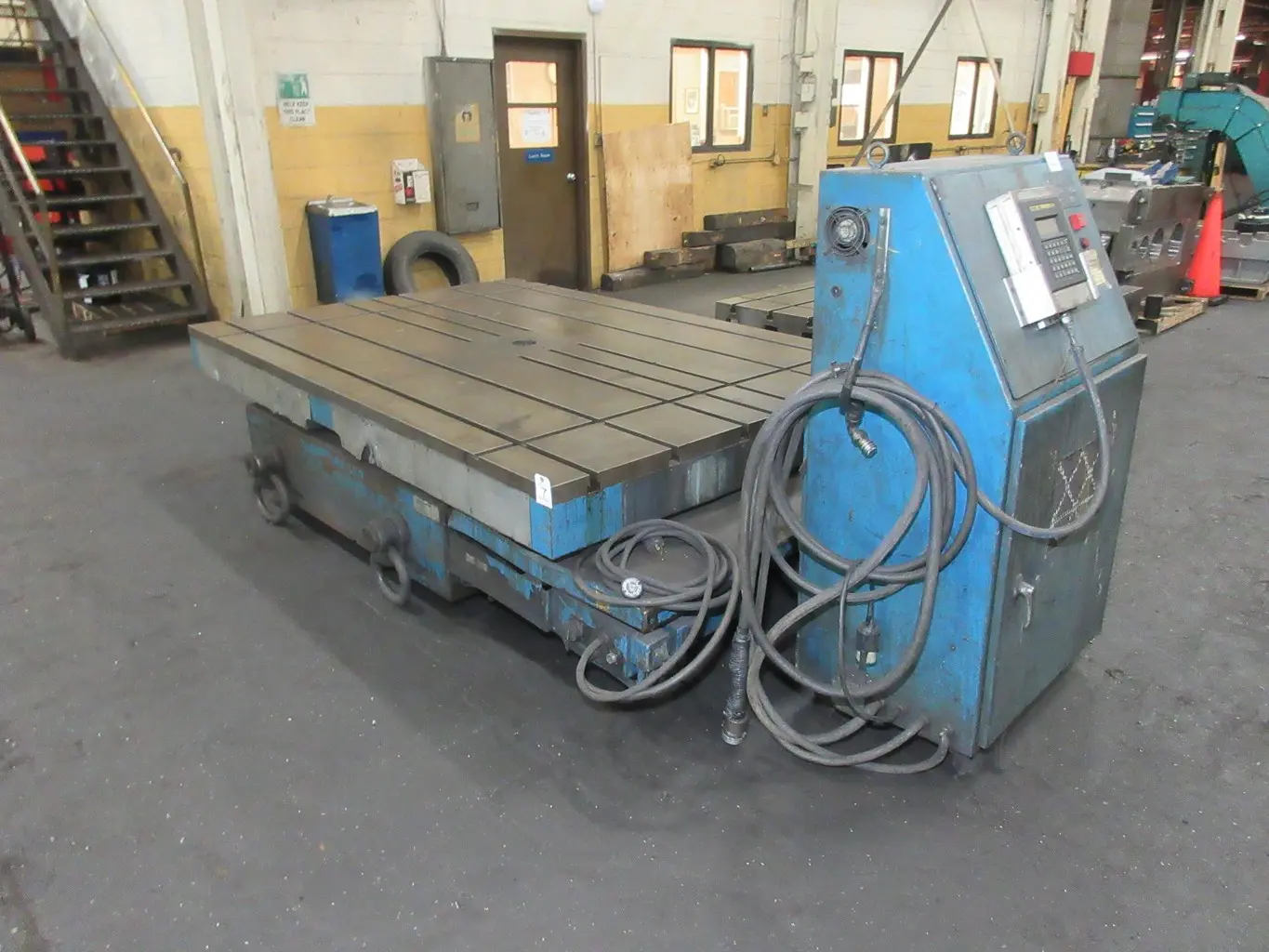

Giddings & Lewis Model 360-P CNC Rotary Table, 72" x 108" with Portable Control Cabinet, Eason 900X Controls, S/N 040-2028-89

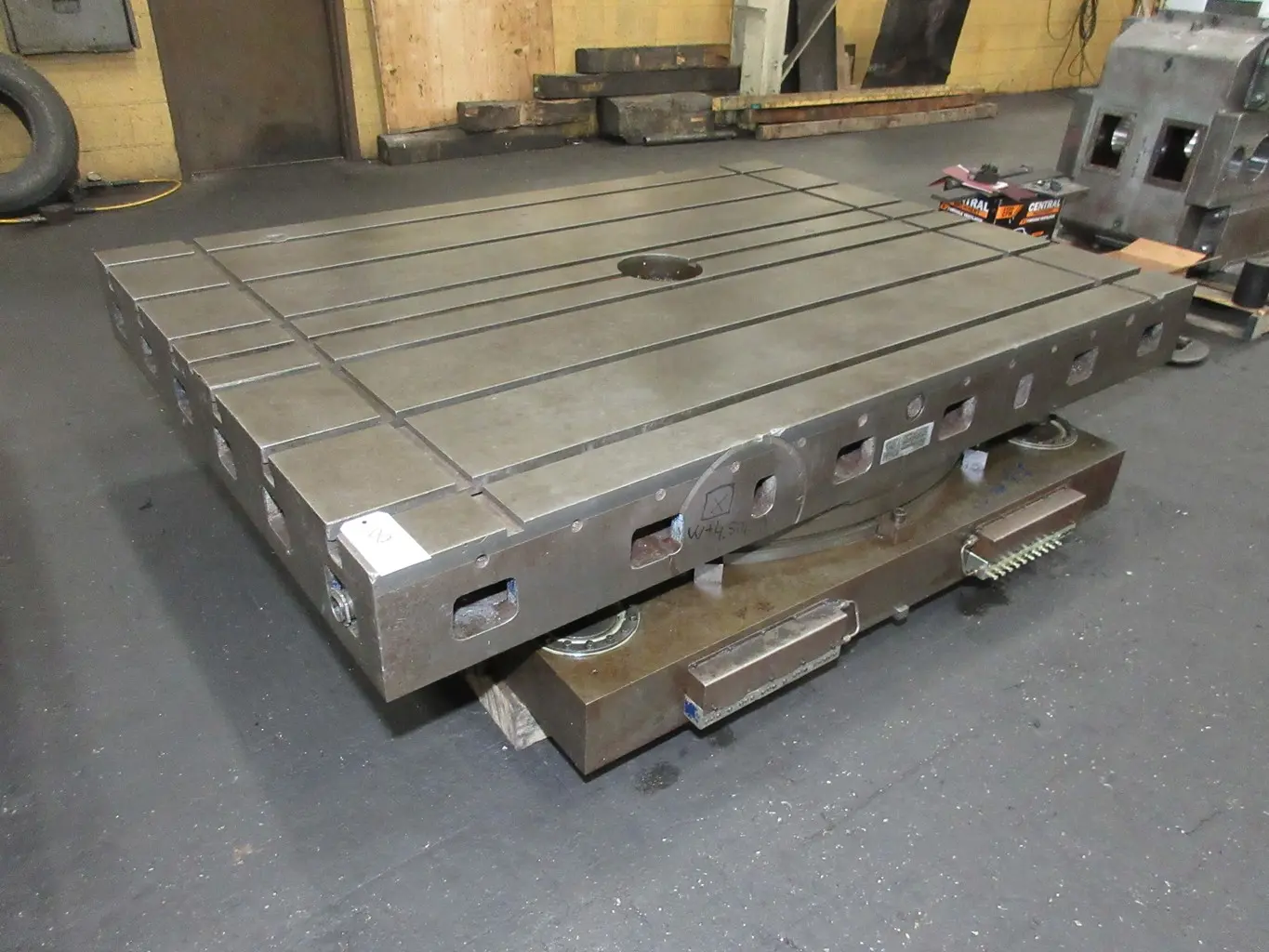

84" x 60" Pneumatic Actuated Rotary Table

Welding Equipment

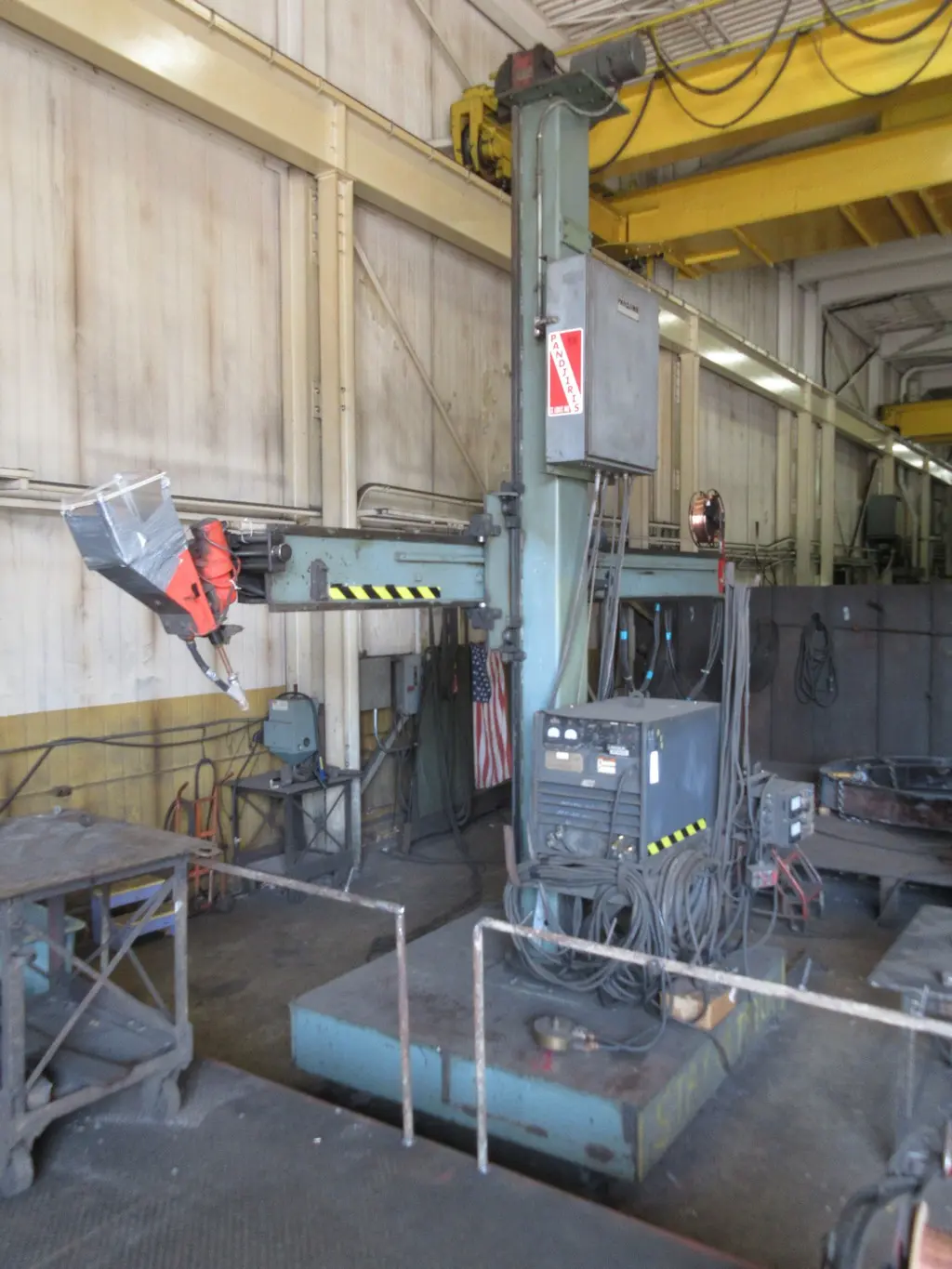

Panjiris Sub-Arc Column and Boom Welding Manipulator, Model 56562-30-VSC Variable Speed Carriage, Track, Model 1000-MANIP 14' Column, 15' Boom, Lincoln Idealarc DC-1000 VC/CV 1000A DC Arc Welder, Lincoln NA-3N Auto Wire Feeder, Pendant Controls

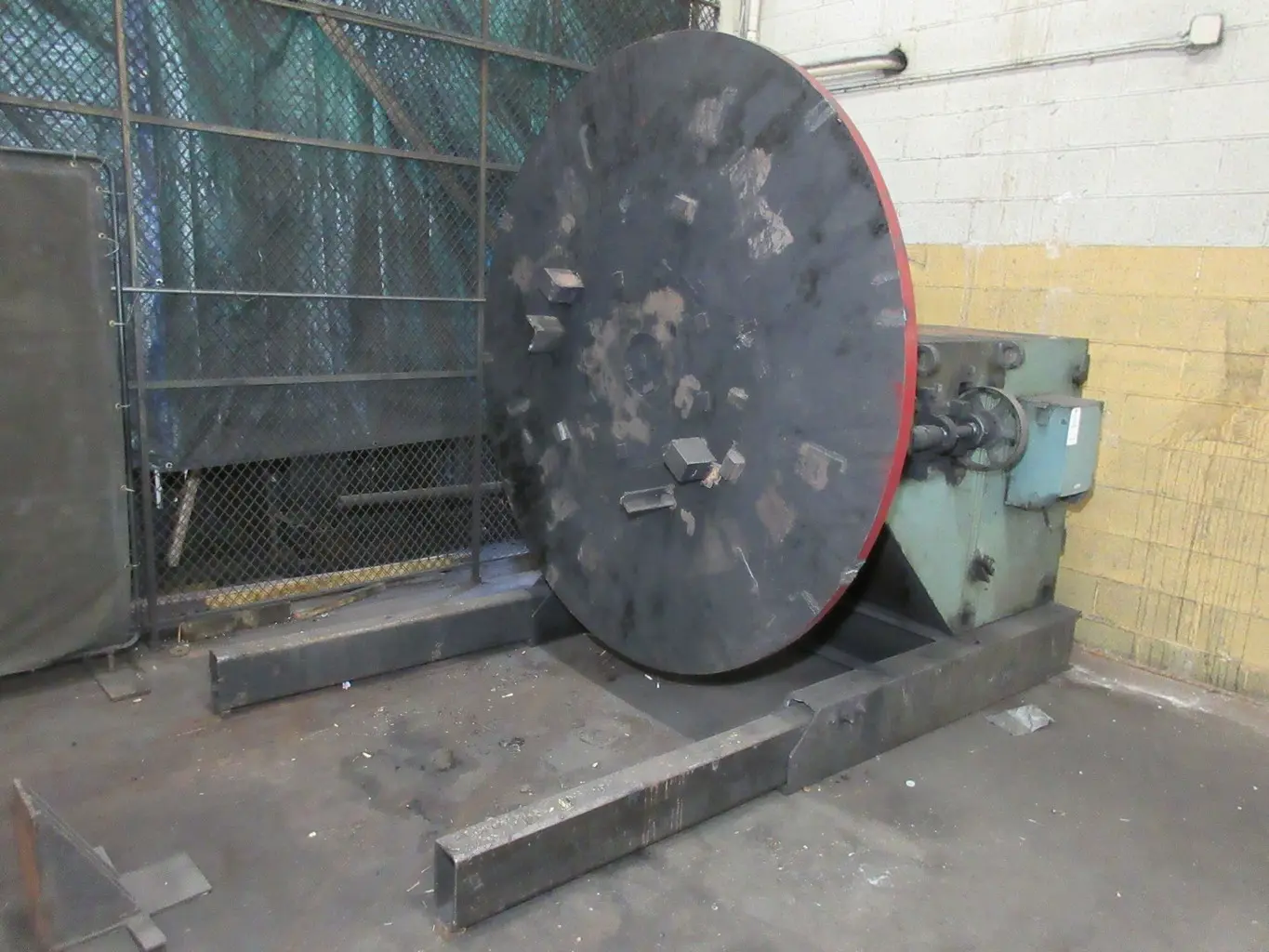

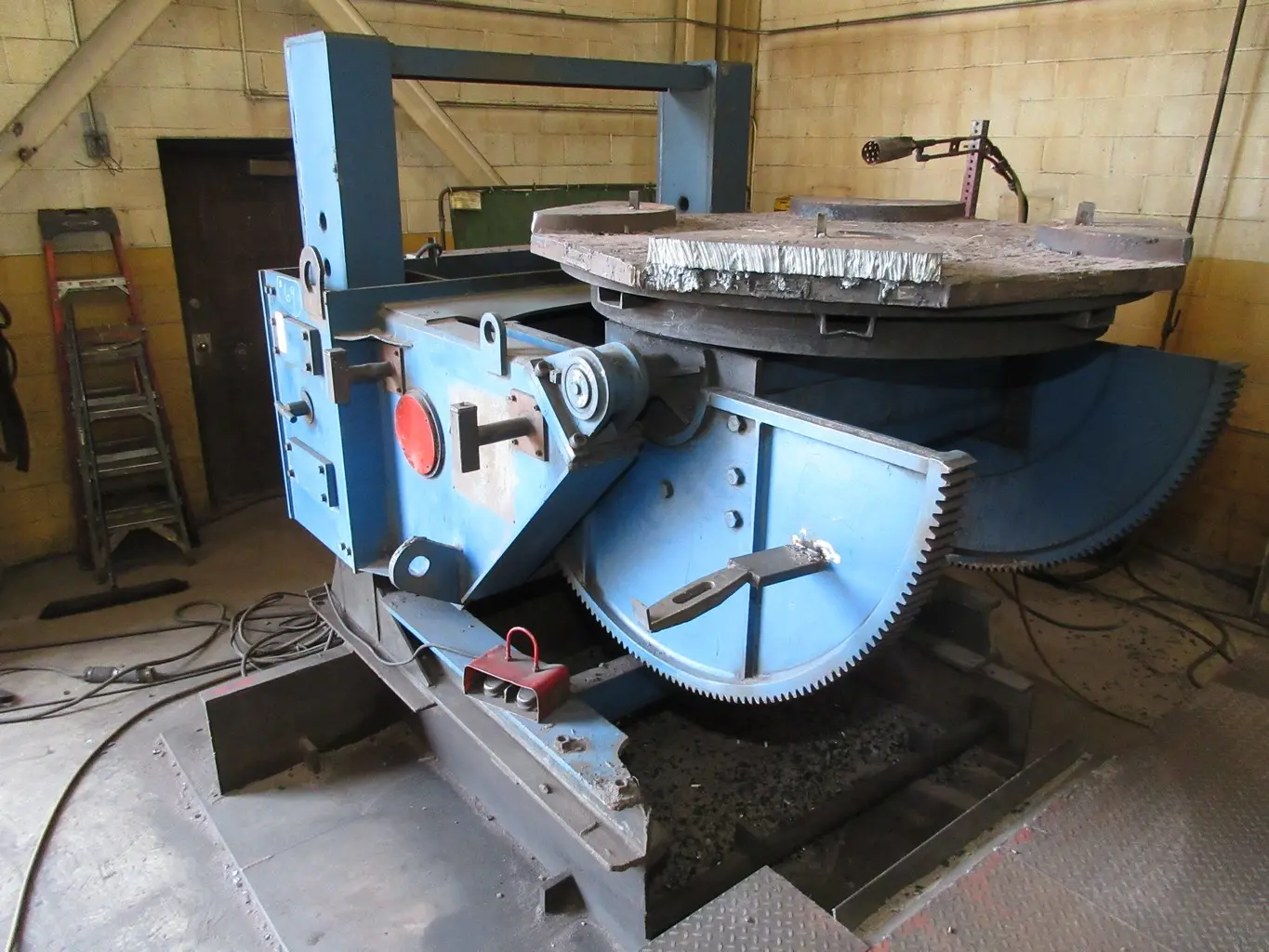

Aronson Model 240P Welding Positioner, 60" Faceplate, 24,000 LB Capacity, SCR Variable Speed Control, S/N 289108
Aronson Model 5HD240A Welding Positioner, 24,000 LB Capacity, 84" Faceplate, Power Tilt, Power Rotation, SCR Variable Speed, S/N 80210
