Specifications

• X-Axis Travel: 64"
• Y-Axis Travel: 32"
• Z-Axis Travel: 30"

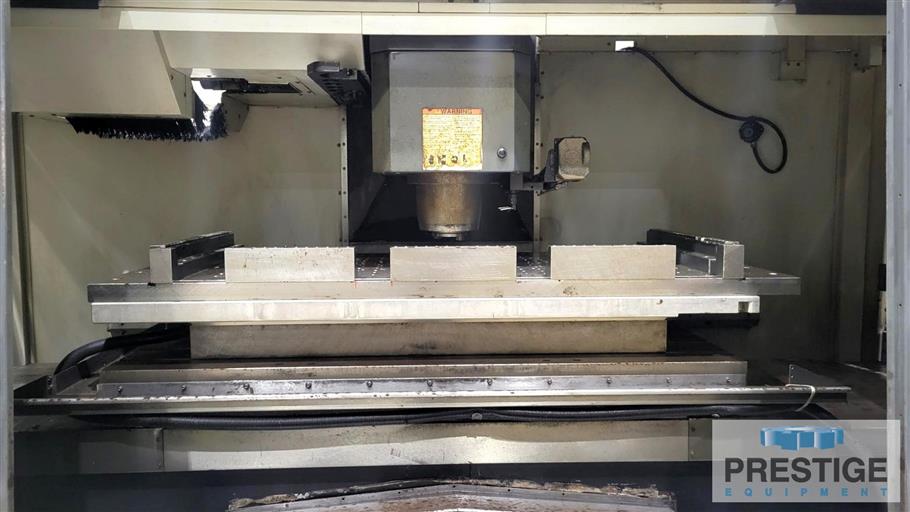

• Table Size: 64" x 28"
• Spindle Nose to Table: 13" – 38.75"
• Maximum Table Load: 4,000 lbs.
• Spindle Speeds (2-Speed Geared Head): 7,500 RPM
• Spindle Taper: CAT 50
• Spindle Motor: 40 HP
• Rapid Traverse (X, Y, Z): 600 IPM
• Cutting Feed Rate: 500 IPM

Equipped With

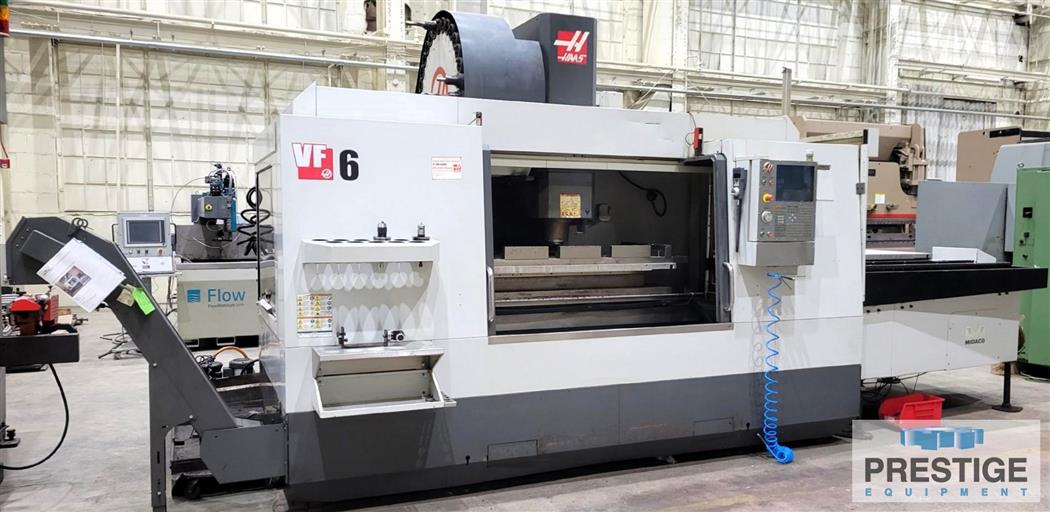

• Haas CNC Control
• 30-Position Side-Mount Automatic Tool Changer

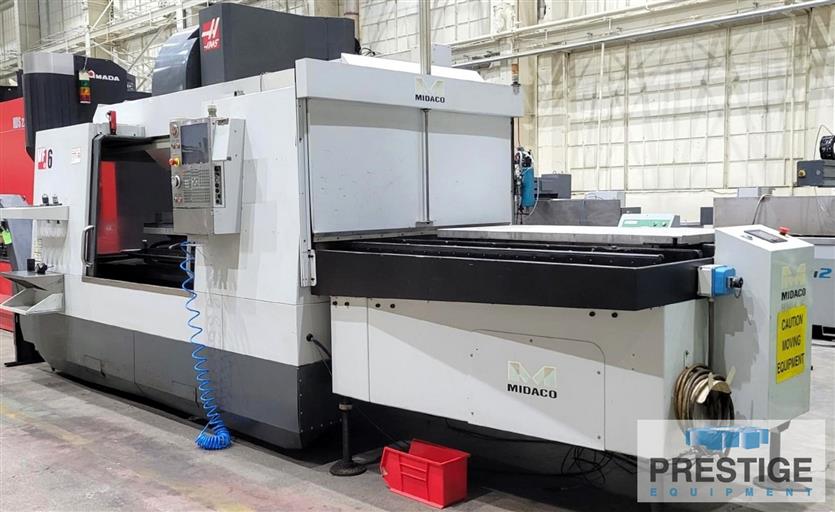

• Midaco 2-Station Automatic Pallet Changer
• Renishaw Probe
• Programmable Coolant
• Chip Conveyor
