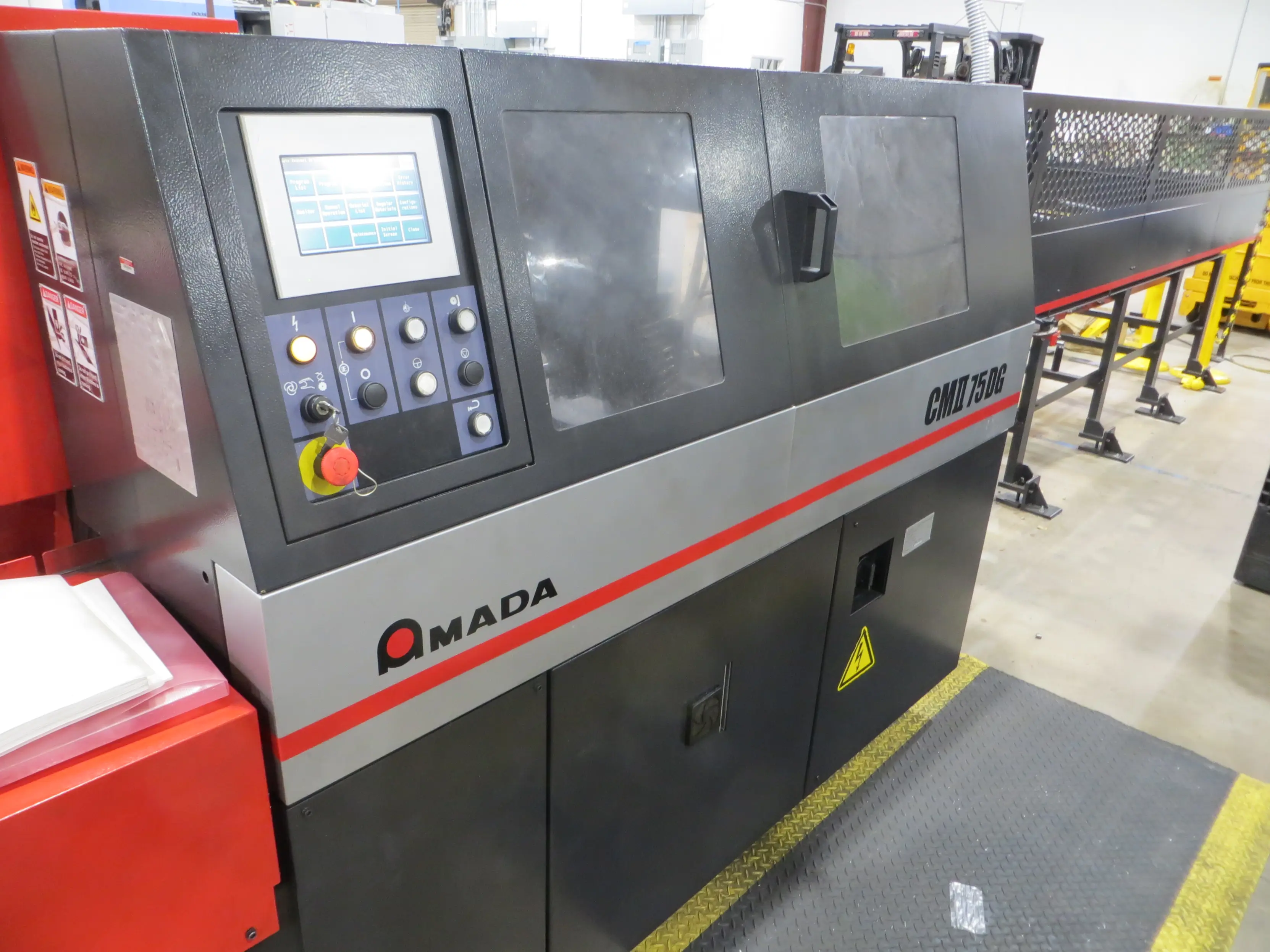

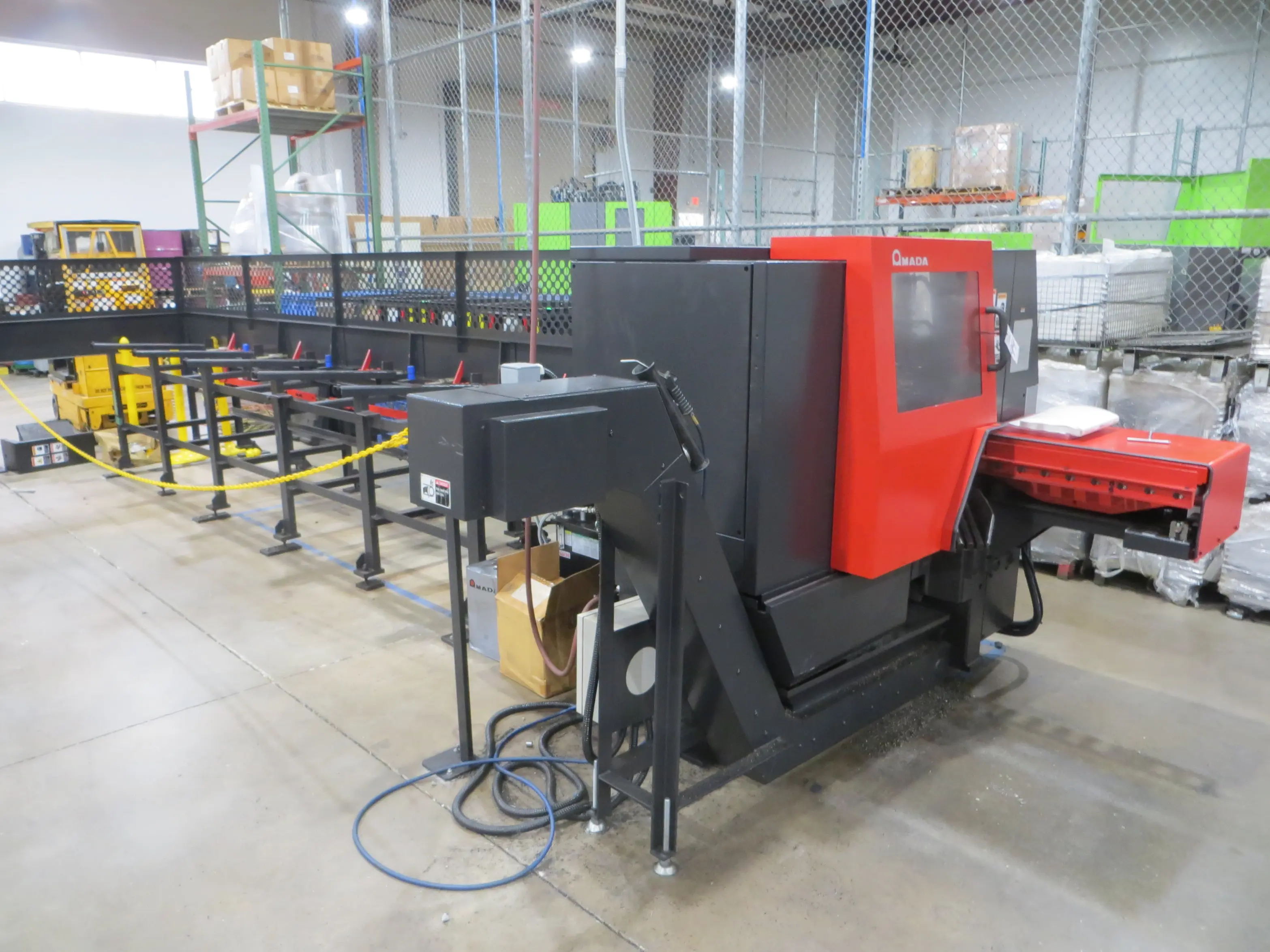

Model: CMII75DG
Year: 2018
Type: CNC Carbide High-Speed Circular Saw
Features: CNC Controlled, Dyna Guide, Incline Table, Auto Trim Cut, Chip Conveyor, Sorting Device

Cutting Capacity

• Rounds: 0.394" – 3"
• Rectangle: 2.55" x 2.55"
• Max Stock Table Load: 19.6' x 3" x 10 Bars

Saw Blade

• Blade Size (OD x Bore x Thickness): 11.2" x 1.57" x 0.08"
• Available Teeth Counts: 60, 80, 120, 140
• Cutting Speed Range: 50–180 RPM
• Infinitely Variable Head Feed: 0–180 IPM (via inverter)

Material Indexing

• Stroke Length: 28.1"
• Index Range: 0.394" – 393.7" (Multiple Indexing)
• End Trimming Range: 0.394" – 3.9"
• Remnant Length: 1.97" + Length of Parts

Motor Specifications

• Saw Blade Motor: 10 HP
• Saw Head Feed Motor: 2.75 HP Servo
• Hydraulic Pump Motor: 2 HP
• Cut-to-Length Feed Motor: 1 HP Servo

Machine Specs

• Dimensions: 83" x 65" x 64" (H)
• Weight: 4,409 lbs

Equipped With

• CNC Control
• Dyna Guide Cutting Head
• Shuttle Vise Material Indexer
• Servo Motor & Ball Screw
• Stock Grip Feed
• Chip Conveyor
• Coolant System
