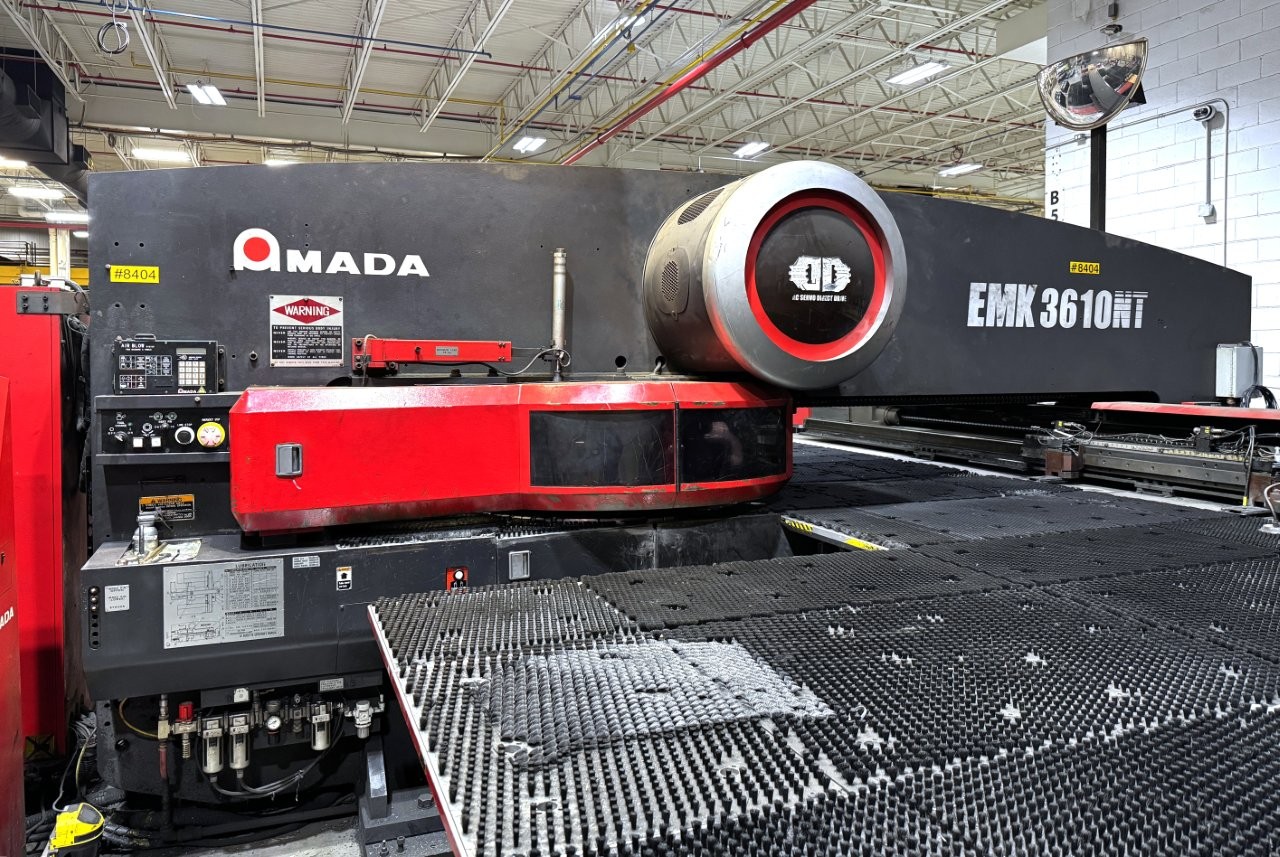

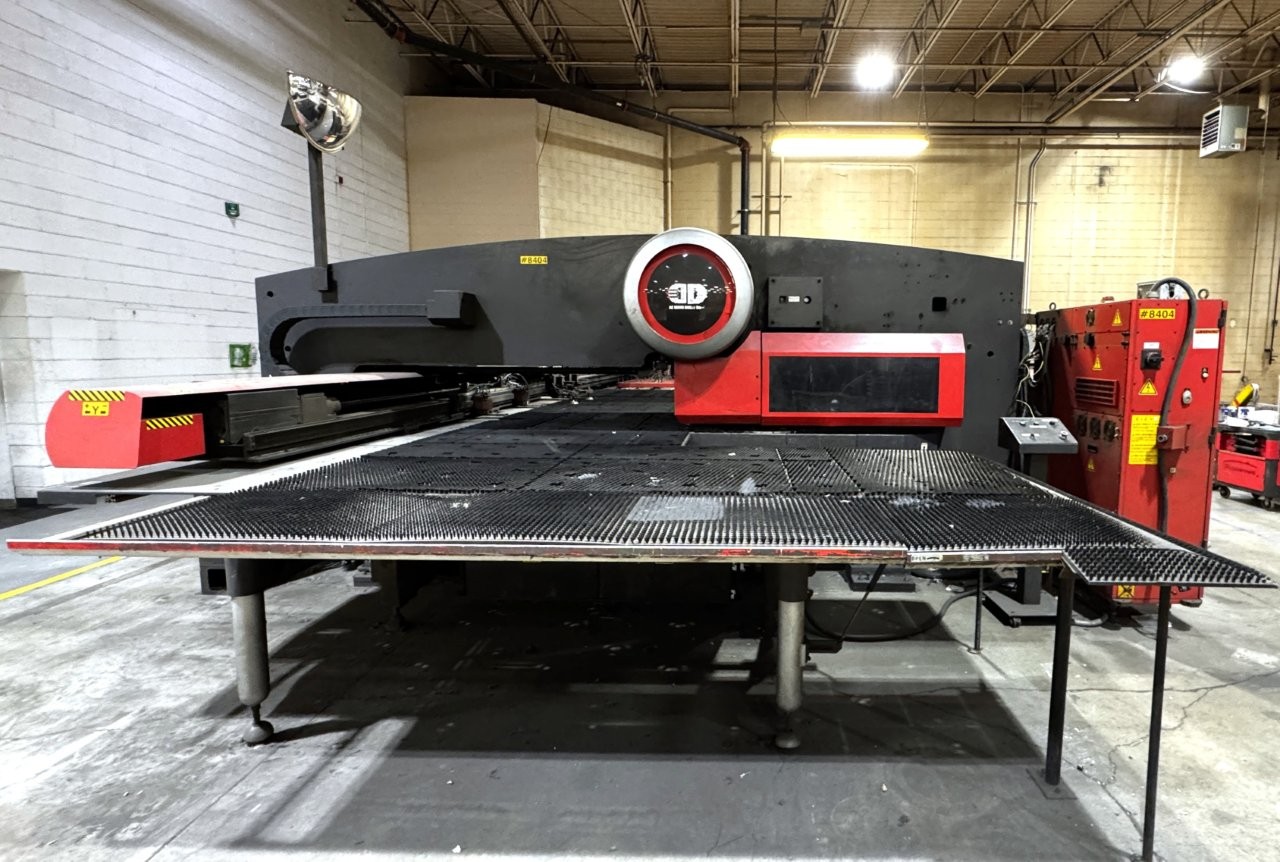

The Amada EMK 3610NT is a high-performance electric servo CNC turret punch designed for precision, speed, and efficiency. This machine offers exceptional accuracy, fast traverse rates, and flexible punching and forming capability for a wide range of sheet metal applications.

Specifications

• Press Capacity: 33 Tons
• X-Axis Travel: 98.425"
• Y-Axis Travel: 60"
• Maximum Sheet Size: 60" x 196.85"
• Maximum Sheet Weight: 330 Lbs.
• Maximum Sheet Thickness: 0.187"
• Punching Accuracy: ±0.004"
• Rapid Traverse (X-Axis): 3,937 IPM
• Rapid Traverse (Y-Axis): 3,150 IPM
• Hit Rate @ 1" Pitch (X-Axis): 500 HPM
• Hit Rate @ 1" Pitch (Y-Axis): 330 HPM
• Work Chute Size (X x Y): 17.32" x 50"
• Approximate Shipping Weight: 44,000 Lbs.

Equipped With

• Fanuc AMNC PC-Based CNC Control
• AC Servo-Driven Ram
• Punch & Form Capability
• 58-Station Thick Turret
• (4) Auto-Index Stations
• Brush Table
• Slug Conveyor
