Overview

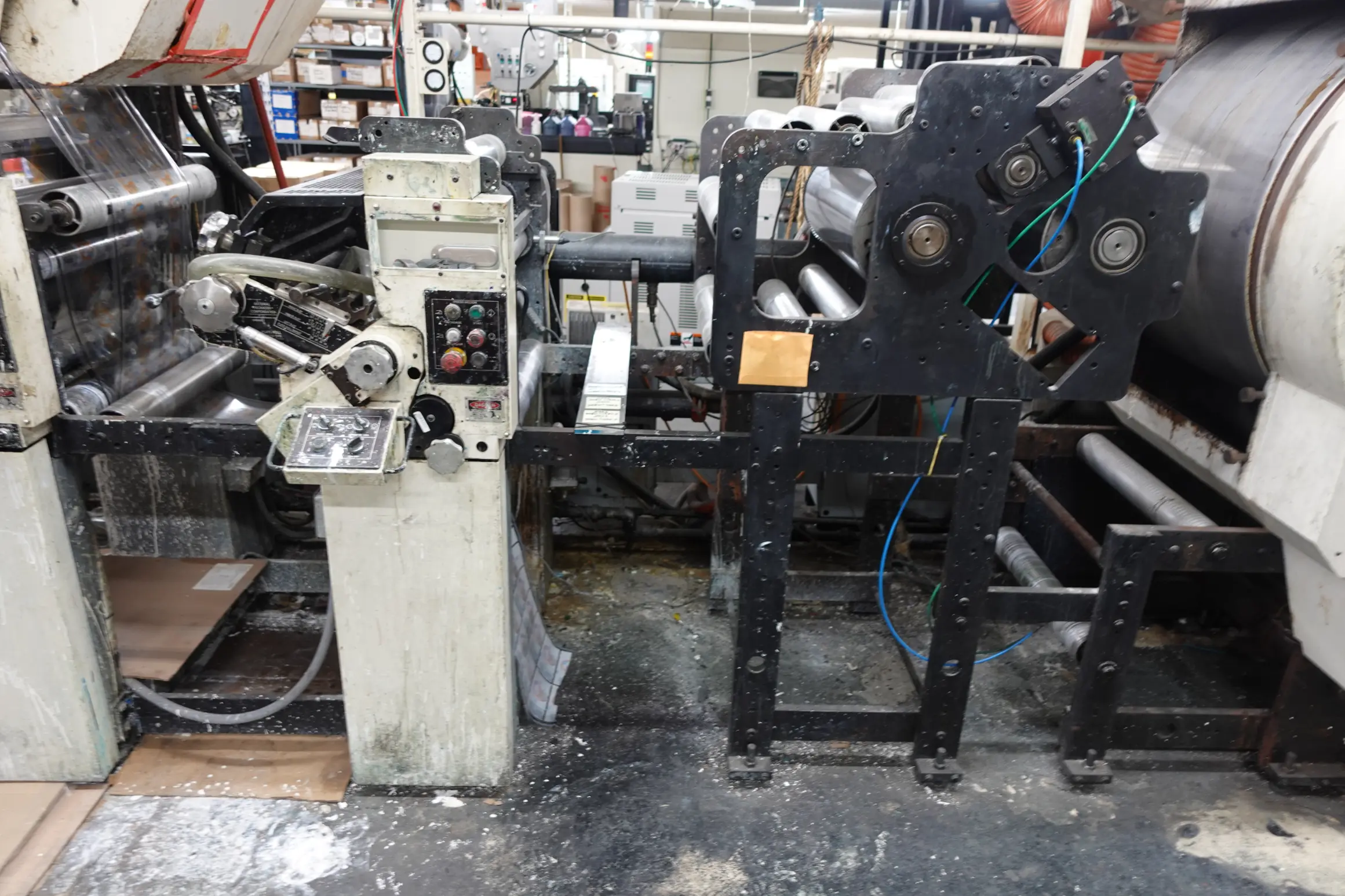

Robust Comco Commander 22" flexographic printing press, serial number F3605-6, built in Cincinnati, Ohio. Designed for label and flexible packaging production, this machine is versatile and configured with advanced operator controls, tension management, and quality inspection systems. Note: The rewinder’s engine requires repair.

Key Specifications

• Electrical: 460V / 3 Phase / 60 Hz / 125 AMPs / Max 100 HP
• Web Width: 279 mm (11") minimum • 558 mm (22") maximum
• Printing Units: 8 flexographic units • Water, UV, or solvent-based inks
• Die-Cutting: Configurable die-cutting and perforation with rotary unit
• Cutting: Longitudinal slitting via circular knives
• Sheeting: Converting sections with thickness compensation enable sheeting

Web Handling & Control

• Advanced web tension control with digital and analog readouts
• High & low tension dancer configurations for material versatility
• Register control panels for manual & automatic adjustments
• Operator interface screen for monitoring & control
• Unwind, laminate unwind, and rewind stations with splicing features
• Guardian PQV Print Quality Verification system • SteadyWeb web control

Drying System

• Integrated hot-air drying system across print units
• Enercon Watt Density Control for surface treatment
• Sterlco Temperature Control for process cooling

Other Features

• Splicer Control: top splice, bottom splice, auto splice, brake release
• Material thickness compensation for multiple substrates
• Standard press motion controls: Start, Stop, Jog, Speed Trim

Located In: 594 Doctor MLK Jr Ave, Memphis, TN 38126
